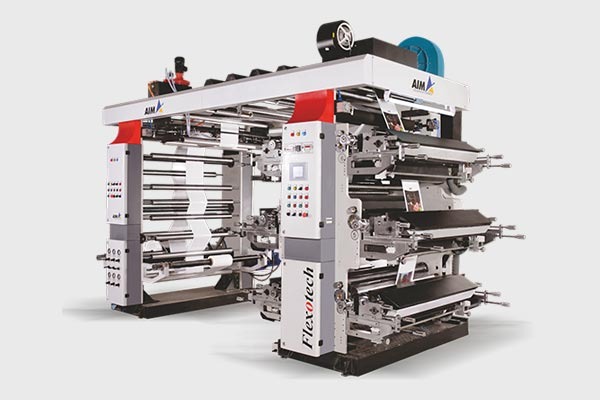

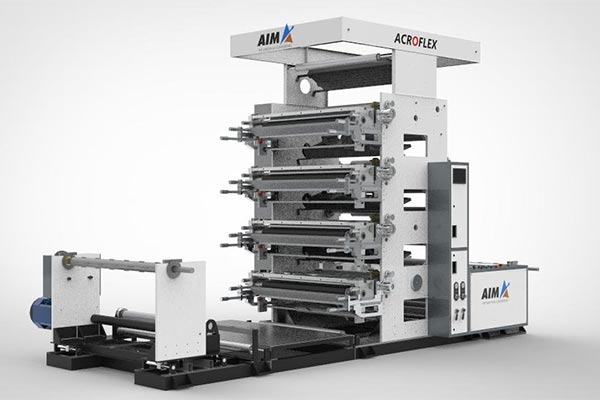

ACROFLEX-WS

Flexographic Printing Machine

The programmable AC imported drive driven Flexographic printing machine with sturdy design, allow the optimum speed, stability and easy operations. Elegantly designed, state of the art machine with practically tolerance free format setting ensure reduced film waste.

Standard Technical Specification

Range of Width 800 (in mm)
Range of Line Speed(MPM) 80
Range of Colours 2/ 4/ 6/ 8
Web Tension Range 20-400 N
Material’s Range WOVEN SACK

Flexographic Printing Machine in Rajkot , Gujarat Download Brochure

Flexographic Printing Machine in Rajkot , Gujarat Quick Inquiry

Application

Flexographic – abbreviated to flexo – printing is a form of rotary printing in which quick-drying inks are transferred from flexible printing plates to a substrate. This is primarily used for large-scale printing of text and images on a variety of materials such as plastic, fabrics, metallic film, paper and nonwovens. The benefits of flexo printing are many, including:

  • The ability to quickly change the print designs
  • Easy adjustment of the repeat lenght of the printed pattern
  • Speed of the production process which, once the initial setup is completed, is fully automated
  • The ability to use a wide variety of ink types
  • Environmentally-friendly process, when water-based inks are used
  • Low maintenance requirements, with parts that tend to have a long operating life

Machine Layout

Flexographic Printing Machine in Rajkot , Gujarat

Technical Specifications (Woven Fabric)

Sr Model Web Width Max. (mm) Print Repeat Min. - Max. Connected Load*
1 4 Colour 800 16" - 48" 18
2 4 Colour 800 16" - 48" 25
3 6 Color 800 16" - 48" 30

Salient Features

Unwinder/ Rewinder Group

  • Machine Frame construction of 30mm mild steel plate
  • Simplex/Duplex unwind station with manual spring type brakes
  • Simplex/ Duplex rewind station with manual spring type clutch
  • Rewind with torque motor and controller
  • hafting of 60mm for high load of roll can handle

Nip-Roll

  • The system mainly composed of matt chromium plated steel roller AC servo motor and drive, load cells and rubber covered nip roller with pneumatically adjustable pressure

Web Guiding

  • Web material transported within converting machines will not always track straight. A web guiding system is required for proper alignment of the material
  • A variety of factors such as, poor quality raw materials, material property variations in raw materials, improper machine alignment, improperly maintained machines, environmental conditions, and processing conditions, cause lateral web misalignment as they are transported in the converting machines/lines
  • The system provides precise tension control of the web before entering to the first printing station and isolates the printing unit from tension disturbance of the unwinding zone
  • Dancing roller on pivoting lever mounting loaded by a counterweight (unique mechanism for tension feedback) having motorized movement by means of slo-syn motor. The dancing roller position controls the speed of the in-feed motor

Ideal Rollers

  • Specially designed, dynamically low friction-low inertia idle rollers made of aluminium ally mounted on-low friction bearing, enhance rotational smoothness
  • Metallurgy, shaft end, internal boring of the aluminium pipe is done, computerized dynamically balancing, bearing with self lubricate and temp resist grease

Control System

  • Drive control System
  • Digital temperature control
  • Programmable AC Imported Drive

Drying System

  • Hot air drying system
  • Centrifugal AC Blower
  • Heater drying chamber
